Knee Anatomy


The knee joint is the largest joint in the human body, and the joint most commonly affected by arthritis. Knowing about knee anatomy can help people understand how knee arthritis develops and sometimes causes pain.

Knee Pain Causes
Knee Pain Causes video

See Possible Causes of Severe Knee Pain

The knee joint is a hinge joint, meaning it allows the leg to extend and bend back and forth with minimal side-to-side motion. It is comprised of bones, cartilage, ligaments, tendons, and other tissues.

Bones of the Knee

Illustration of the three knee bones: patella, femur and tibia

Three bones meet and move against each other at the knee joint:

Patellofemoral Syndrome
Patellofemoral Syndrome
  • The bottom of the femur (thigh bone) meets with top of the tibia (shin bone)
  • The patella (kneecap) glides along a grove located at the bottom and front of the femur

Bones and arthritis: One sign of arthritis is the development of osteophytes, or bone spurs, at the joint. These small growths on bones can create friction and affect a knee’s range of motion.

See Osteoarthritis Symptoms and Signs

Articular Cartilage of the Knee

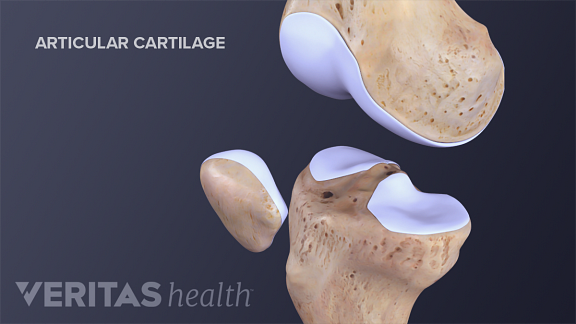

Illustration of the articular cartilage in the knee

Articular cartilage covers the surfaces of the bones where they meet: at the bottom of the femur, the top of the tibia, and the back of the kneecap. Articular cartilage is an extremely slippery, strong, flexible material.

See What Is Cartilage?

Articular cartilage serves two purposes:

  • It allows the bones to glide over each other as the knee bends and straightens
  • It acts as a shock absorber, cushioning bones against impacting each other (e.g. during walking)

Cartilage and arthritis: Knee arthritis is defined by the loss of healthy articular cartilage in the knee.

 See What Is Knee Osteoarthritis?

In This Article:

Knee Meniscus

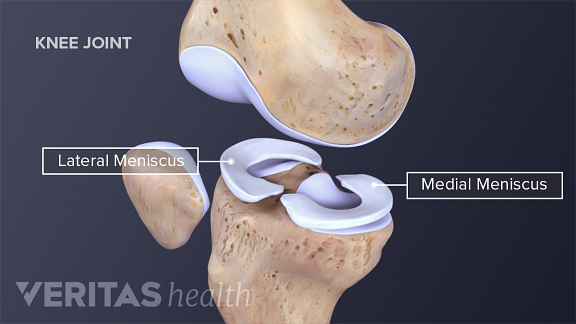

Illustration of the lateral and medial menisci

A knee meniscus is a thick pad of cartilage located between the femur and tibia. There are two menisci in each knee:

Meniscus Tear Knee
Meniscus Tear Knee video
  • The medial meniscus, which is located on the inside of the knee.
  • The lateral meniscus, located on the outer side of the knee.

The menisci reduce shock and absorb impact when the knee is moving or bearing weight. They also help stabilize the knee and facilitate smooth motion between the surfaces of the knee.

Knee meniscus and arthritis: A meniscus injury or meniscus degeneration can lead to the wear-and-tear of articular cartilage, and vice versa.

See Understanding Meniscus Tears on

Ligaments of the Knee

Illustration of the 4 collateral ligaments in the knee ACL, PCL, MCL, LCL

Ligaments are bands of strong tissue that connect bone to bone. The knee has 4 major ligaments that connect the femur to the tibia:

  • Anterior cruciate ligament (ACL)
  • Posterior cruciate ligament (PCL)
  • Medial collateral ligament (MCL)
  • Lateral collateral ligament (LCL)

The ACL and PCL prevent the femur and tibia from sliding too far forward or backward. The MCL and LCL prevent side to side movement.

A relatively new discovery revealed another ligament in the knee that was named antero lateral ligament (ALL), which seems to work in conjunction with ACL.1 However, research is still ongoing to clarify its exact job and importance to the function and stability of the knee.

Ligaments and knee arthritis: Knee ligament injuries can lead to joint instability, accelerating the wear-and-tear that leads to knee arthritis. Conversely, knee arthritis can cause joint instability, which puts more strain on ligaments and increases the risk of ligament injuries.

Read more about Anterior Cruciate Ligament (ACL) Injuries on

Tendons of the Knee

Illustration of the Patellar tendon

Tendon tissue connects bone to muscle. The knee’s largest tendon is the patellar tendon.

The patella tendon begins at the thigh’s quadriceps muscles and extends downward, attaching patella to the front of the tibia. When the quadriceps muscles contract the patellar tendon is pulled and the leg straightens.

Tendons and arthritis: Patellar tendon problems can arise from knee arthritis but are more likely to affect athletes who do a lot of running, pivoting, and jumping. If the patellar tendon becomes irritated and inflamed it is called patellar tendinopathy, also known as jumper’s knee.

See Understanding Jumper’s Knee on

Bursae Surrounding the Knee

Illustration of a knee bursae

A bursa is a tiny, slippery, fluid-filled sac located between a bone and soft tissue. Like cartilage, bursae reduce friction. But while cartilage reduces friction between bones, bursae reduce friction between bones and soft tissues, such as muscles and tendons—the bursae help muscles and tendons slide freely as the knee joints move. The knee has several bursae.

Pes Anserine
Pes Anserine video

 See What Is a Bursa?

Bursae and knee arthritis: Arthritis can alter joint biomechanics, leading to irritation of a bursa. When a bursa is irritated and inflamed, it is called bursitis. The most common form of knee bursitis is prepatellar bursitis.

 See Knee (Prepatellar) Bursitis

The Knee’s Synovial Membrane and Synovial Fluid

Illustration of synovial membrane in the knee

A delicate, thin membrane, called the synovial membrane, encapsulates the knee joint. The synovial membrane produces synovial fluid. This viscous fluid lubricates and circulates nutrients to the joint.

  • When the knee is at rest, the synovial fluid is contained in the cartilage, much like water in a sponge.
  • When the knee bends or bears weight the synovial fluid is squeezed out. Therefore, joint use is necessary to keep joints lubricated and healthy.

See What Is a Synovial Joint?

The synovial membrane, synovial fluid, and knee arthritis: If the synovial membrane becomes inflamed, it is called synovitis. People who have rheumatoid arthritis and other inflammatory joint conditions may experience synovitis. In addition, a knee affected by osteoarthritis may have too little synovial fluid, exacerbating joint friction.

 See How Do Synovial Joints Work?

Muscles of the Knee

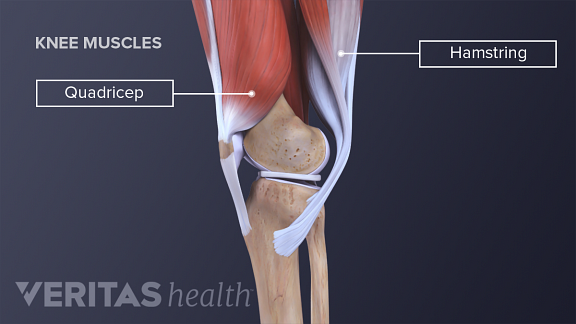

Illustration of the quadriceps and hamstring muscles

For a knee joint to maintain its normal range of motion, the surrounding muscles must be flexible. The muscles must also be strong to provide adequate support to the knee joint.

  • Quadriceps muscles at front of the thigh
  • Hamstrings at the back of the thigh
  • Lower leg muscles, including the gastrocnemius at the back of the calf

Muscles and knee arthritis: Weak muscles will not provide adequate support and stability; therefore, weak muscles can lead to or accelerate knee osteoarthritis.

In addition, recent studies suggest that arthritis may trigger mechanisms that make the surrounding muscles of the knee weaker, creating a cycle where weakness promotes arthritis and arthritis promotes further weakness.24 This information makes proper knee support exercises in the context of arthritis even more important.

See Knee Exercises for Arthritis

The knee is a large, complex joint with many parts. When one part is injured or degenerates, it can change the knee joint’s biomechanics and have a cascading effect on other parts. The best way to avoid joint degeneration and knee osteoarthritis is to eat a healthy diet, maintain a normal weight, and participate in a routine exercise program.

  • Referrence
    • 1.Farhan PHS, Sudhakaran R, Thilak J. Solving the Mystery of the Antero Lateral Ligament. J Clin Diagn Res. 2017;11(3):AC01-AC04.
    • 2.Silva JMS, Alabarse PVG, Teixeira VON, et al. Muscle wasting in osteoarthritis model induced by anterior cruciate ligament transection. PLoS One. 2018;13(4):e0196682. Published 2018 Apr 30. doi:10.1371/journal.pone.019668
    • 3.Silva J, Alabarse P, Teixeira V, et al FRI0768-HPR Muscle wasting in osteoarthritis model induced by anterior cruciate ligament transection Annals of the Rheumatic Diseases 2017;76:1508.
    • 4.Alnahdi AH, Zeni JA, Snyder-Mackler L. Muscle impairments in patients with knee osteoarthritis. Sports Health. 2012;4(4):284-92
